Labelling

ALS 306 · ALS 309

Novexx high performance 6-9 inch labellers

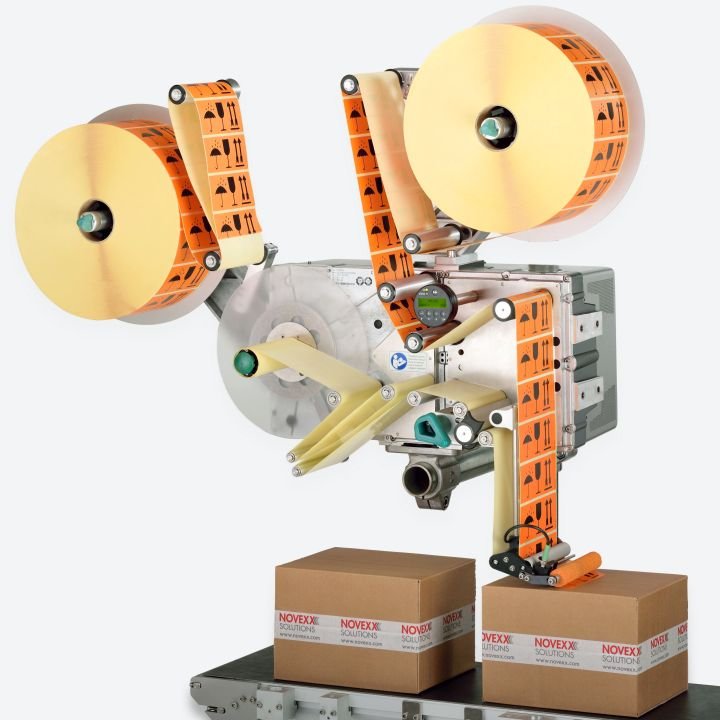

Novexx ALS 306 and ALS 309 labellers are top performers for applying 6-9 inch wide product labels on packaging lines

These modular labellers are built for continuous use:

  • Large label rolls
  • Tandem application
  • Fast service modules.

Novexx designed the ALS 306 and ALS 309 to optimise line performance and productivity .

Applicator Heads · Dispense · Blow · Touch

Novexx have a range of modular dispense edges and applicator heads. Thse equip ALS/XLS labellers for all standard label application modes. Please ask Codeway about special needs.

1. V Dispense Edge

2. Swivel Dispense Edge

3. Spring-loaded Dispense Edge

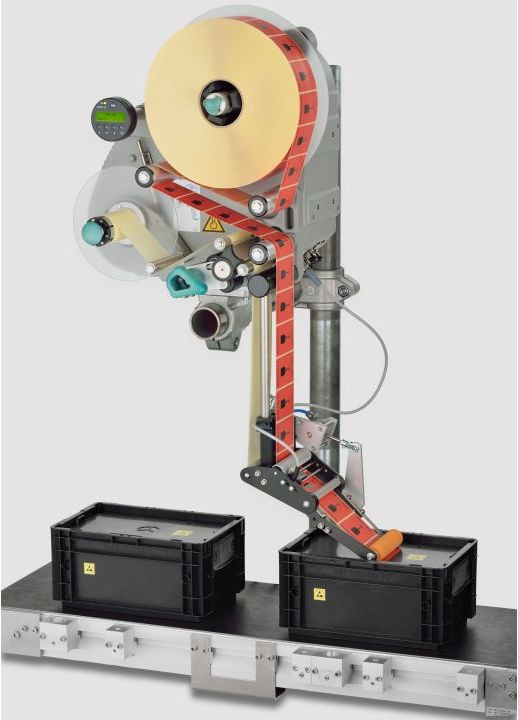

4. Pneumatic Dispense Edge

5. Blow-on Head

6.Touch-on Head · 80 x 80 mm label

7. Touch-on Head • 125 x 125 mm label

Applicator selection

This Applicator Selector chart will help you choose which Labellers and Applicator Heads will be suit your application:

  1. Top
  2. Side
  3. Bottom
  4. Leading edge
  5. Leading edge + side
  6. Corner front
  7. Corner back
  8. Corner leading top

    ALS Applicator Selector chart
    ALS Applicator Heads datasheet

Labeller models

Model Label width Line speed 1,000 labels ** Interfaces
ALS 104 10-110 mm 30 m/min 3.4 min Sensors, RS232
XLS 204 10-110 mm 40 m/min 2.6 min Standard **
XLS 206 10-160 mm 30 m/min 3.4 min Standard **
XLS 209 50-253 mm 30 m/min 4.1 min Standard **
XLS 256 10-160 mm 50 m/min 2.0 min Standard **
XLS 272 10-53 mm 70 m/min 1.5 min Standard **
ALS 306 25-160 mm 60 m/min 1.7 min Standard **
ALS 309 25-233 mm 45 m/min 2.3 min Standard **

* 100 mm labels with 2 mm gap.
** Sensors, RS232, USB, Ethernet and extra I/O.

PDF

ALS 104, ALS 204, ALS 206/256, ALS 209
ALS 272
ALS 306, ALS 309
