Scanning
Rugged Direct Part Mark Scanner



Datalogic
Powerscan PD9530 DPM EVO
High performance ID/2D DPM scanning in an industrial enviroment

The PowerScan DPM series include the latest optics and software from Datalogic to make the reading of codes with DPM easy and intuitive.
  • Available with optional display with 4-keys
  • Datalogic’s Motionix™ motion-sensing technology
  • Enhanced Decoding software will support any kind of Direct Part Marking (DPM) technology
  • STAR Cordless System™ available in 433 MHz or 910 MHz options
  • Datalogic’s 3GL™ (3 Green Lights) technology
  • Water and Particulate Sealing Rating: IP65
  • Snappy omnidirectional reading
  • Soft white light illumination
  • Intuitive aiming system
  • Ergonomic shape
  • Image capture

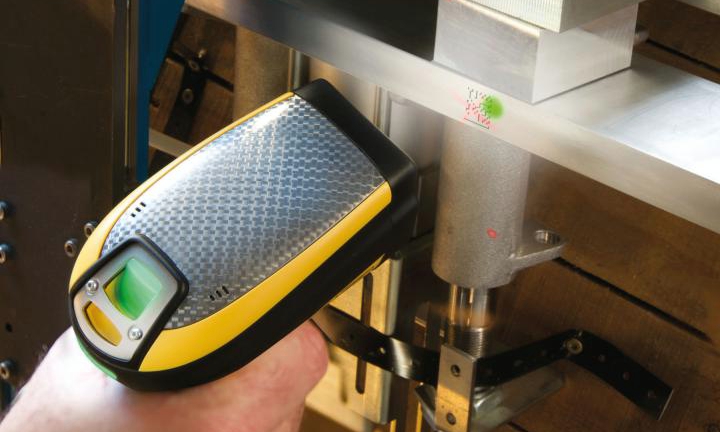

Direct Part Marking (DPM) is a process that allows users to imprint a bar code directly on an item instead of printing the code on a paper label. Different technologies are available to directly mark objects: laser/chemical etching, dot peening and ink jet printing. Each of these methods have specific advantages and disadvantages in terms of durability, cost and ease of reading.

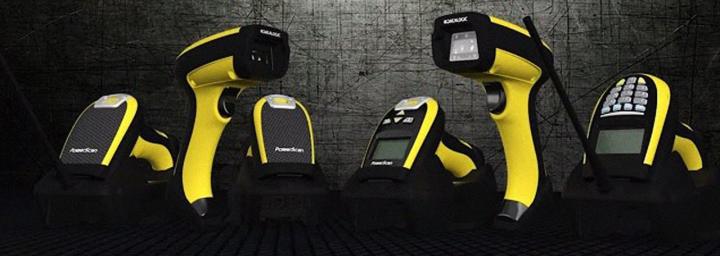

The PowerScan™ 9500-DPM Evo series of scanners are rugged handheld area imagers specifically addressed and capable of reading codes marked with DPM.

The PowerScan DPM series include the latest optics and software from Datalogic to make the reading of codes with DPM easy and intuitive. The typical reading distance is from contact to 4-5 cm / 1.5-1.9 in, depending on the DPM technology used, the code resolution, and the material and surface type. The scanner is also capable of reading standard bar codes on printed labels. High density optics allow the capture of very small, high-resolution codes in a range from near contact up to 15.0 cm / 5.9 in. 6.7. The intuitive aiming system provides the highest first-pass reading rates. A soft pulsed white illumination light results in reduced flashes and is very gentle to the eyes.

The PM9500 DPM Evo series offers the display option with 4 configurable keys. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications. The BC9180 is provided with Standard Multi- Interface: USB-KBD, USB-COM, USB-OEM, RS-232 and Ethernet connectivity: Telnet, Web Server, Data Socket, Ethernet/IP.

Datalogic’s Motionix™ motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode.


Industry Applications

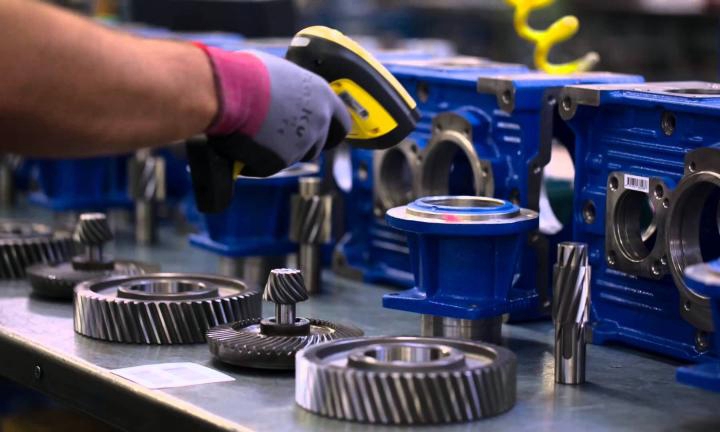

Manufacturing Shop Floor

  • Work-in-Progress
  • Sub-Assembly
  • Component Tracking
  • Quality Control
  • Time and Cost Analysis
  • Line Inventory Control
