Labelling

ALS 306 · ALS 309

Novexx high performance 6-9 inch labellers

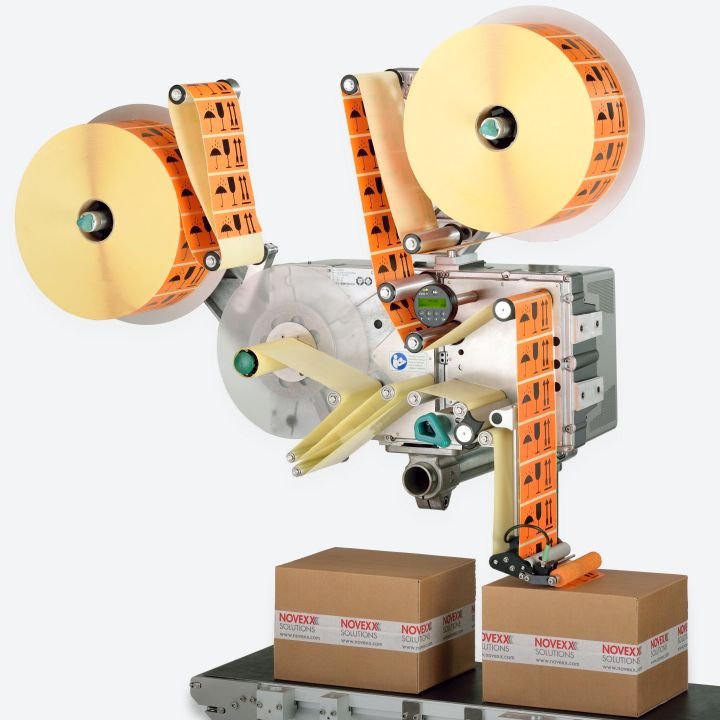

Novexx ALS 306 and ALS 309 labellers are top performers for applying 6-9 inch wide product labels on packaging lines

These modular labellers are built for continuous use:

  • Large label rolls
  • Tandem application
  • Fast service modules.

Novexx designed the ALS 306 and ALS 309 to optimise line performance and productivity .


Applicator Heads · Dispense · Blow · Touch

Novexx have a range of modular dispense edges and applicator heads. Thse equip ALS/XLS labellers for all standard label application modes. Please ask Codeway about special needs.


1. V Dispense Edge


2. Swivel Dispense Edge


3. Spring-loaded Dispense Edge



4. Pneumatic Dispense Edge


5. Blow-on Head


6.Touch-on Head · 80 x 80 mm label


7. Touch-on Head 125 x 125 mm label


Applicator selection

This Applicator Selector chart will help you choose which Labellers and Applicator Heads will be suit your application:

  1. Top
  2. Side
  3. Bottom
  4. Leading edge
  5. Leading edge + side
  6. Corner front
  7. Corner back
  8. Corner leading top

    ALS Applicator Selector chart
    ALS Applicator Heads datasheet


Labeller models

Model Label width Line speed 1,000 labels ** Interfaces
ALS 104 10-110 mm 30 m/min 3.4 min Sensors, RS232
XLS 204 10-110 mm 40 m/min 2.6 min Standard **
XLS 206 10-160 mm 30 m/min 3.4 min Standard **
XLS 209 50-253 mm 30 m/min 4.1 min Standard **
XLS 256 10-160 mm 50 m/min 2.0 min Standard **
XLS 272 10-53 mm 70 m/min 1.5 min Standard **
ALS 306 25-160 mm 60 m/min 1.7 min Standard **
ALS 309 25-233 mm 45 m/min 2.3 min Standard **

* 100 mm labels with 2 mm gap.
** Sensors, RS232, USB, Ethernet and extra I/O.


PDF

ALS 104, ALS 204, ALS 206/256, ALS 209
ALS 272
ALS 306, ALS 309

Winning Solutions

We will be delighted to recommend and supply the right products for your project. Codeway provides full technical services and lifetime support to ensure a great return on investment year after year.
