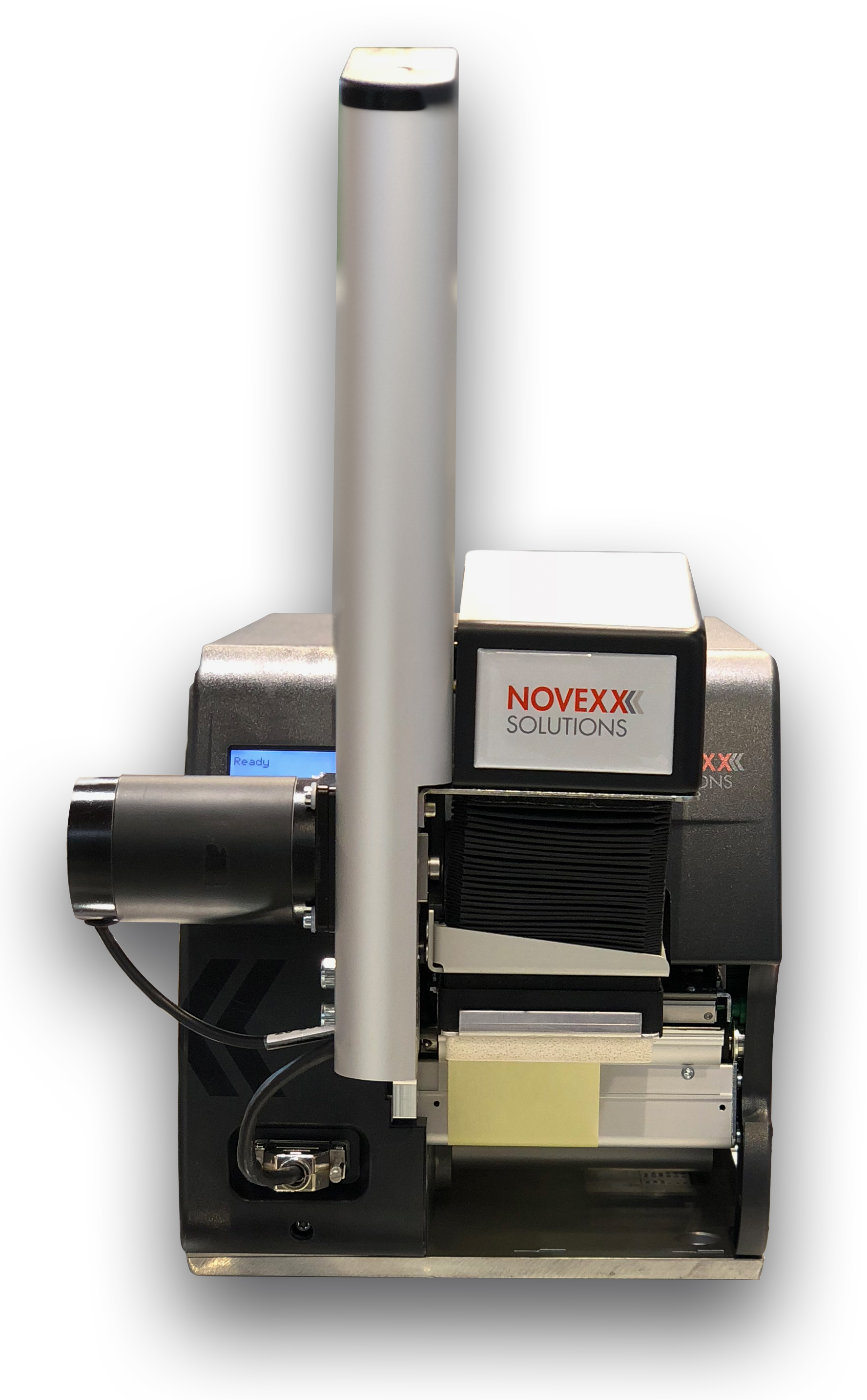

XLP LTSA Light touch applicator
Stationary · Moving · Variable height

The LTSA applies to top (or side) of boxes, label size: 30mm x 30mm to 80mm x 80mm.

The LTSA is a light touch head for Novexx XLP label printers. The product can be stationary or moving up to 35 metres per minute.

  • Application of labels on sensitive products without the need of compressed air
  • Suitable for variable product heights
  • Applicator extends its ‘telescopic arm’ until sensor encounters resistance
  • Stroke length 30mm to 190 mm

VideoXLP 504 LTSA


Configuration

  • Top
  • Even and uneven surfaces
  • Stopped products
  • Moving products
  • Products with variable height

Key facts

SPECIFICATIONS
Label width 30–80 mm
Label length 30–80 mm
Capacity* up to 50 labels/min
Application accuracy* +/- 1 mm
Application: Top
Stroke length Max. 190 mm
Min stroke: 30 mm from home position to detection of top of product
Label size (W x L) Min. 30 x 30 mm
Max. 80 x 80 mm
Activation: manual Start trigger by operator, e.g. by footswitch (single start connector)
Activation: auto Start trigger by product start sensor (Sub-D connector on optional I/O board)
Product speed Up to 35 m/min.
(during application of label)
Capacity indication Up to 50 labels/min.
Apply edge 90° ± 3°
Dimensions 230 x 392 x 120 mm (W x H x D)
Compatibility XLP 504 dispenser
