Novexx ALS 306 and ALS 309 high performance labellers apply 6 inch wide and 9 inch wide labels to fast moving goods

---

Novexx ALS 306 • ALS 309 Labellers

Novexx ALS 306 and ALS 309 label applicators apply wide labels to products on high speed conveyors..They are are designed to optimise line performance and productivity.

ALS 306

• Applies labels up to 152 mm (6") wide and 600 mm (24") long.
• Line speed up to 60 m/min
• Label stop accuracy: 0.5 mm at fixed line speed; 1.0 mm at variable line speed

ALS 309

• Applies labels up to 229 mm (6") wide and 600 mm (24") long.
• Line speed up to 45 m/min
• Label stop accuracy: 0.5 mm at fixed line speed; 1.0 mm at variable line speed

---

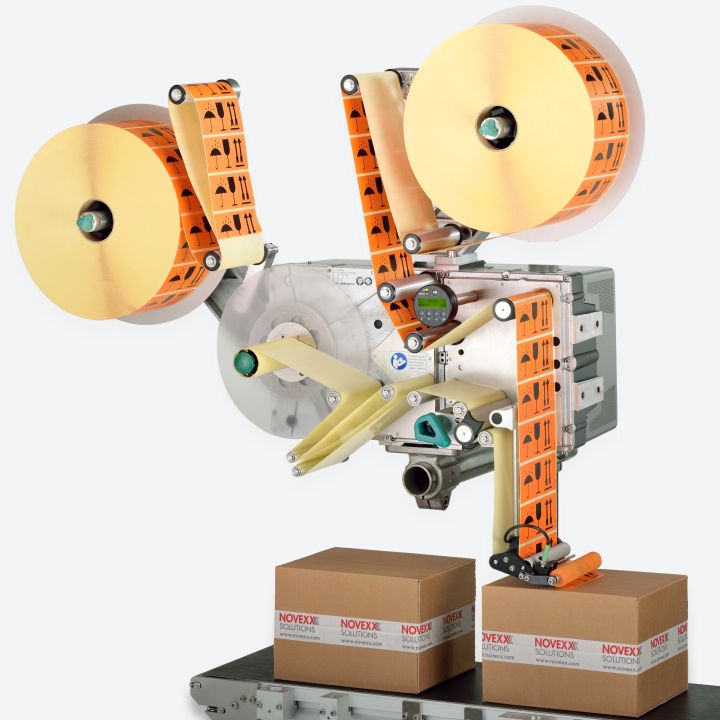

ALS 306 applicator with L-shape dispense edge and splice table for twin label rolls

Features

Built for continuous 24/7 use,

Large label rolls, 400 mm diameter • Twin rolls with splicer (optional) • Tandem operation (twin labellers, optional) • Quick change modules for fast service and shorter downtime. • Apply unit and power rewind modules pull out for easy maintenance and shorter downtime.

Flexible installation and operation

IP54 kit • Easy line integration thanks to multiple label roll positions and mounting options • PLC, I/O and IT interfaces • Various label, product and status sensor options • Automatic Product Speed Following (APSF) for accurate labelling on variable speed conveyors.

Choice of label dispensing edges and applicator heads

Synchronous application: L-shape dispensing edges with standard and adjustable rotating fixtures (EURO fixing) • Asynchronous application: various LA applicator heads (telescopic, touch, blow).

---

Applicator Heads · Dispense · Blow · Touch

Novexx have a range of modular dispense edges and applicator heads. Thse equip ALS/XLS labellers for all standard label application modes. Please ask Codeway about special needs.

---

1. V Dispense Edge

---

2. Swivel Dispense Edge

---

3. Spring-loaded Dispense Edge

---

---

4. Pneumatic Dispense Edge

---

5. Blow-on Head

---

6.Touch-on Head · 80 x 80 mm label

---

7. Touch-on Head • 125 x 125 mm label

---

Applicator selection

This Applicator Selector chart will help you choose which Labellers and Applicator Heads will be suit your application:

1. Top
2. Side
3. Bottom
4. Leading edge
5. Leading edge + side
6. Corner front
7. Corner back
8. Corner leading top

   ---

   ALS Applicator Selector chart
   ALS Applicator Heads datasheet


---

Labeller models

Model	Label width	Line speed	1,000 labels **	Interfaces
ALS 104	10-110 mm	30 m/min	3.4 min	Sensors, RS232
XLS 204	10-110 mm	40 m/min	2.6 min	Standard **
XLS 206	10-160 mm	30 m/min	3.4 min	Standard **
XLS 209	50-253 mm	30 m/min	4.1 min	Standard **
XLS 256	10-160 mm	50 m/min	2.0 min	Standard **
XLS 272	10-53 mm	70 m/min	1.5 min	Standard **
ALS 306	25-160 mm	60 m/min	1.7 min	Standard **
ALS 309	25-233 mm	45 m/min	2.3 min	Standard **

* 100 mm labels with 2 mm gap.
** Sensors, RS232, USB, Ethernet and extra I/O.

---
