Labelling
Industrial Printer



Sato

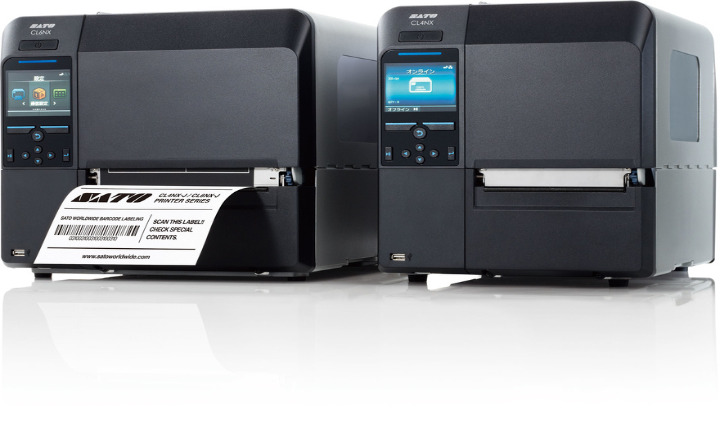

CL4NX
High performance, Plug-and-Play

The printer with advanced support for barcode symbologies, character sets and RFID encoding
  • User-friendly operation
  • Multinational language support
  • Multi emulation support
  • Standard multiple on-board interfaces
  • Support for a variety of media types
  • Easy setup and maintenance
  • Space saving design
  • High-Speed Processing & throughput
  • Superior print accuracy and quality
  • Durable Design

The NX is SATO's universal printer range engineered for the ultimate operator experience, and is skillfully crafted to support new and legacy printing applications across a wide range of verticals that would require a durable and dependable printer for years to come.The NX Series is a game-changing innovation that is made easy. It is designed to be so easy to use and maintain that anyone can feel the difference from the day they start using it. The new NX Series comes loaded as standard with many different features to make operation and maintenance easy.

Application Enabled Printing

  • AEP is a powerful on-board intelligence which enables customisation of the printer operation to significantly simplify labelling processes and reduce business costs
  • It also allows the direct connection of common peripherals such as numeric keypads, qwerty keyboards, scanners & weighscales. Plus automatic fetch of network or cloud data.Reduces up-front costs as a PC is not essential for printing. • AEP solutions are highly flexible and are easily implemented

Intuitive Operation & On-screen Video Guidance

  • LED indicator and colour displays alert operator to the printer status
  • Pre-installed guidance videos assist in error resolution and printer maintenance
  • Capability to upload customised start-up screen and videos
  • Advanced user interface for full operational control of print, application,I/F, and system settings via the front panel display
  • Customisable GUI content and security enabled menu access allows administrators to personalise the operator experience
  • Best in class 60° print head opening, tension damper, and coreless ribbon system facilitate easy media setup
  • Coloured operator touch points ensure safe operation and interactions with movable parts

High Performance & Sustainable Innovations

  • Head check function to ensure barcode printing accuracy
  • High speed data processing equals faster first label out and print job throughput
  • Label and Ribbon Near-End & End sensors

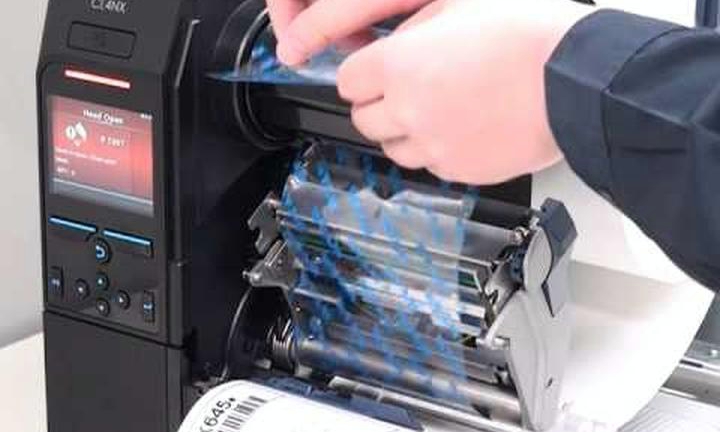

  • Coreless ribbon take up with One-touch release
  • Energy Star power efficiency certification
  • Optional linerless media kit eliminates the waste associated with conventional label production
  • 10 preset darkness levels with finite adjustment between presets for optimal print performance setting
  • UHF and HF RFID* options support a wide variety of tags and include adjustable antenna system for optimal inlay encoding

Industrial Durability

  • Metal casing including front panel and side covers protects against any industrial environment
  • Die-cast Aluminium frame, print and ribbon mechanism provide solid stability to ensure print quality and printer durability
  • 1 year global warranty for printer including installed options. Long lasting 30 kilometre guaranteed print head and platen roller

Functional Benefits

  • Bi-fold cover allows compact design and reduces workspace requirement
  • Supports internal, external, clockwise and counter-clockwise rotational media types. Adjustable label holder for increased internal roll capacity
  • Field installable options, snap in print head, and tool-less platen replacement minimise downtime
  • External media inlets, mounting fixtures, and cable hook


Model Lineup

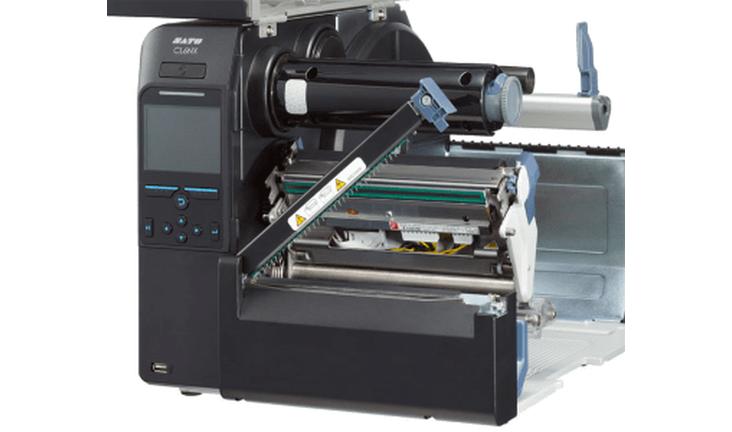

Cutter

  • Front mount guillotine cutter unit
  • Single item or batch print job cut settings
  • Long lasting blade life

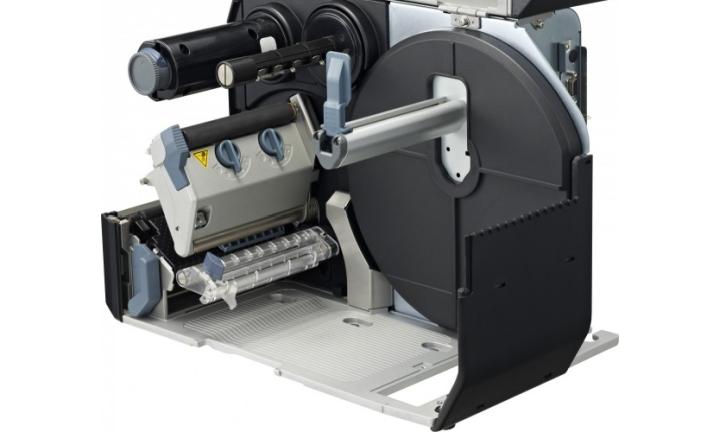

Standard

  • Tear-off bar for manual media separation
  • Label holder adjustable to support up to 10” OD media rolls
  • External media slots for rear or bottom feed applications

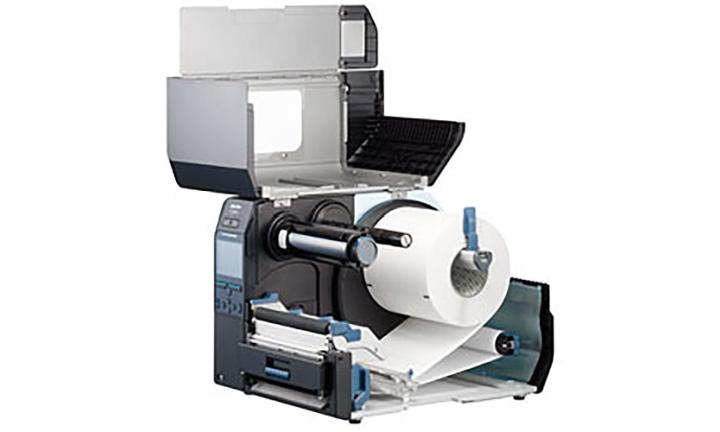

Dispenser

  • Dispenser unit including peel bar for liner separation
  • Additional internal liner take-up for active peel applications


Options

Linerless (Only available on CL4NX)

  • Puretech™Linerless modified cutter unit with on demand sensor
  • Anti-adhesive Puretech™ platen roller, media path and sensor cover
  • Pureline™ visible wear indicator

Barcode Checker

  • Simple and inexpensive option
  • Confirms that the barcode content is correct.
  • Void marks and reprints the label if necessary

Wireless LAN

  • 802.11 a/b/g/n
  • 2.4/5GHz dual-band switching
  • Wi-Fi Direct and CCX Cisco certified

Real Time Clock

  • Time and date tracking RTC
  • Enable timestamp labelling

RFID Encoder (Only available on CL4NX)

  • UHF ISO/IEC 18000-6 or HF ISO/IEC 15693 & 14443
  • PJM 100% accuracy & close stack tagging
  • Short pitch encoding support
