Business users create solutions with PowerForm. They simplify the process, prevent errors and improve productivity. There is no need for front-end data entry applications and back-end data integration.

Create solutions


Operators can initiate printing with a scan or a touch. Data entry is the minimum necesary to retrieve data from the business syste. A visual check of the label image helps to avoid mis-labelling. No more guesswork.

Label selection · Data entry


Results

  1. Simplified process for new operators.
  2. Data from a database.
  3. Secure label templates and label content.
  4. Custom forms do what you want.
  5. Touchscreens replace keyboads.
  6. Icons replace text and buttons.
  7. Real-time preview helps avoid mistakes.

NiceLabel 2017 · PowerForms features

GENERAL
Single user workstation: unlimited printers
Multi-user: 3 · 5 · 10 printer licences
20 User interface Languages
Accepts and prints data in any language - Unicode data support
Installs side-by-side with previous NiceLabel editions for controlled migration
Certified and compatible systems:
Vista/Windows 7/Windows 8/Windows 8.1/Windows 10
New
Extensive contextual help with inline tips to empower business users New
Free phone and e-mail technical support for software evaluation and registered users New
Intuitive Office 2016 style user interface New
Single straightforward installer for 32 and 64 bit environments New

TEMPLATE DESIGN
Automatic check digit calculation
Customizable "human readable" character template
More than 70 linear and 2D barcode symbologies with support for printer-based barcodes
Place "human readable" text anywhere in relation to barcodes
Print objects in reverse/negative: white on black
Text, barcodes, lines, boxes, circles, clip art, images and PDF files
Windows system and built-in printer fonts support
Intuitive GS1 Application Identifier Data Source Wizard New
Label setup wizard for quick start with best printing quality and performance New
Object alignment tools with snap-to-objects and arbitrary rotation of all objects New
Unlimited undo and redo commands New
DESIGNER PRO adds
Fit-text-to-box (dynamic point size)
Relative object positioning and variable label length
Security: lock label design with a password
Text on ellipse
Wrap-text-to-shape (word-wrapping and text justification to non-rectangular shapes)
Extensive RFID support New
Library of ready-to-use international standards compliance label templates New
Object printing based on dynamic data (business rules) New
Rich text object including powerful editor with support for tables and more New

DYNAMIC DATA
Date and Time fields sourced from PC or Printer
Decimal counters
Keyboard or scanner input at print time
Print data from Excel and text files
Edit database connected documents without accessible database (offline mode) New
DESIGNER PRO adds
10+ prebuilt functions for efficient data concatenation and processing
Custom SQL database queries
Full database connectivity to almost any existing database
Full serialization including support for printer-based serial numbers
Variable graphic fields including graphics sourced from database
VBScript and Python scripting for custom data processing
Import and Export Dynamic data definitions New
Reusable connections to multiple databases and tables within the label or solution New
Single screen for straightforward management of dynamic data (Dynamic Data Manager) New

ON-DEMAND PRINTING AND PRINT PRODUCTIVITY
Customizable data-entry filters and error checking
Auto-built, all-in-one printing form with data entry controls and dynamic print job preview New
Print time database record selection on a single screen New
Secure operator environment for efficient document selection and printing (NiceLabel Print) New
Single click creation of shortcuts for printing New
DESIGNER PRO adds
Adaptable print form for improved control and efficiency (recommended for touch screens) New
Responsive form design to fit different screen resolutions New
POWERFORMS adds
Interface and control peripheral devices, weight scales, PLCs…
Support for multi-lingual user environment
Automatic serial port monitoring for Weight Scale Integration New
Fully configurable user experience with 15+ prebuilt user interface controls and support for multiple forms New

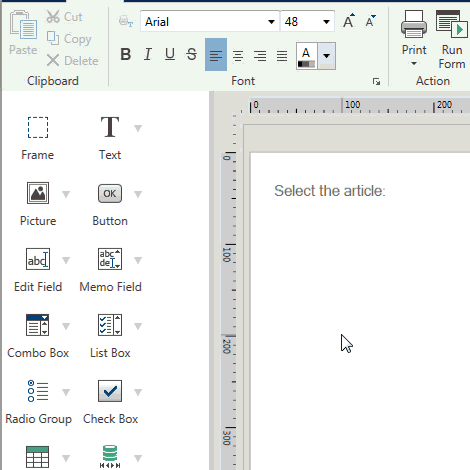

Integrated no-programming graphical application builder for building efficient labelling solutions for controlled printing New
Integrated PDF engine for optimized PDF document creation without 3rd party tools New
Solution document type can contain multiple labels and forms for improved dynamic data management and portability New
Spellchecking for manual data entry New
Workflow and business rules editor including 40+ actions for printing labels, database queries, integrations with scales, PLCs… New

PRINTING
Local and network printer support
Native support for 4000+ label and marking devices
Session print - combines multiple labels in a single print job for performance
Speed optimization reuses repeating data instead of resending it
Support for all laser/inkjet printers with a Windows driver
DESIGNER PRO adds
Advanced printer cutter control
Batch printing: header and tail labels

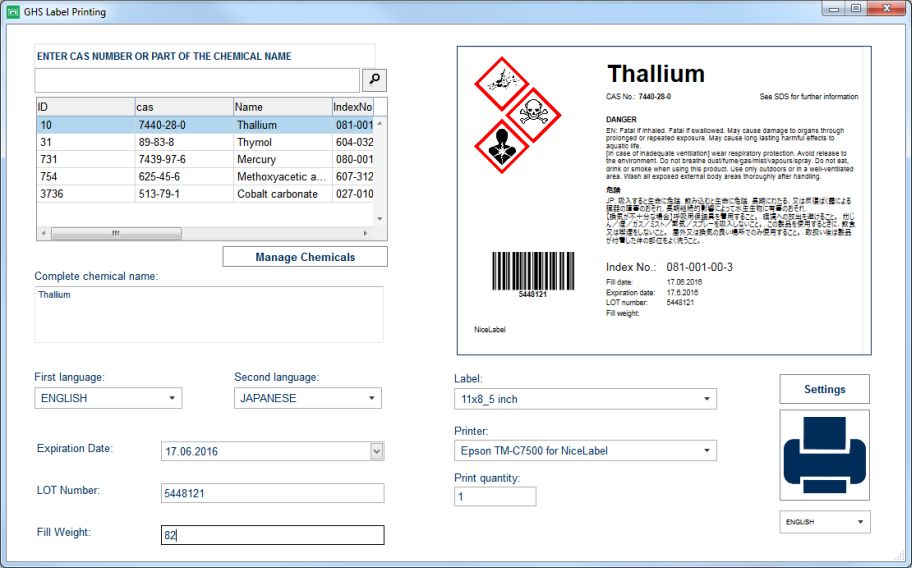

Color separation (for GHS labelling)
